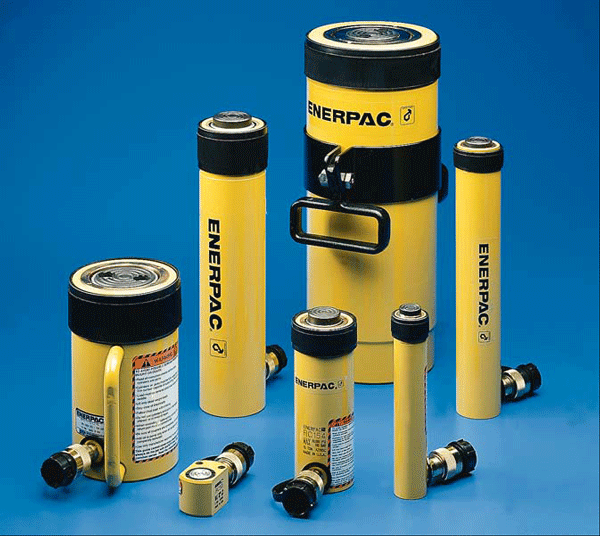

RC-Series, Single-Acting Cylinders On Metro Hydraulic

Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
Designed for use in all positions
Removable strap handles for unobstructed fixturing (RC-5013, RC-7513 and both 100 ton models)
High strength alloy steel for durability
Nickel plating available on most models
Heavy-duty return springs
Baked enamel finish for increased corrosion resistance
CR-400 coupler and dust cap included on all models

1 - 25 of 39 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Nominal Cylinder Capacity (tons)

Maximum Cylinder Capacity (tons)

Stroke (inches)

At Least : No More Than :
Available Range: 0.63 to 14.25

Oil Capacity (cu. inch)

Collapsed Height - A (inches)

At Least : No More Than :
Available Range: 1.63 to 19.38

Outside Diameter - D (inches)

Item #	Nominal Cylinder Capacity	Maximum Cylinder Capacity	Oil Capacity	Price	Add To Cart/Request Quote

RC-50	N/A 5 tons	N/A 4.9 tons	N/A 0.62 cu. inch	$584.09	Add To Cart Request Quote
RC-51	N/A 5 tons	N/A 4.9 tons	N/A 0.99 cu. inch	$607.45	Add To Cart Request Quote
RC-53	N/A 5 tons	N/A 4.9 tons	N/A 2.98 cu. inch	$630.82	Add To Cart Request Quote
RC-55	N/A 5 tons	N/A 4.9 tons	N/A 4.97 cu. inch	$654.18	Add To Cart Request Quote
RC-57	N/A 5 tons	N/A 4.9 tons	N/A 6.96 cu. inch	$807.72	Add To Cart Request Quote
RC-59	N/A 5 tons	N/A 4.9 tons	N/A 9.07 cu. inch	$970.14	Add To Cart Request Quote
RC-101	N/A 10 tons	N/A 11.2 tons	N/A 2.24 cu. inch	$696.46	Add To Cart Request Quote
RC-102	N/A 10 tons	N/A 11.2 tons	N/A 4.75 cu. inch	$706.47	Add To Cart Request Quote
RC-104	N/A 10 tons	N/A 11.2 tons	N/A 9.23 cu. inch	$783.23	Add To Cart Request Quote
RC-106	N/A 10 tons	N/A 11.2 tons	N/A 13.70 cu. inch	$862.23	Add To Cart Request Quote
RC-108	N/A 10 tons	N/A 11.2 tons	N/A 17.89 cu. inch	$999.07	Add To Cart Request Quote
RC-1010	N/A 10 tons	N/A 11.2 tons	N/A 22.65 cu. inch	$1,138.14	Add To Cart Request Quote
RC-1012	N/A 10 tons	N/A 11.2 tons	N/A 26.84 cu. inch	$1,285.00	Add To Cart Request Quote
RC-1014	N/A 10 tons	N/A 11.2 tons	N/A 31.31 cu. inch	$1,401.82	Add To Cart Request Quote
RC-151	N/A 15 tons	N/A 15.7 tons	N/A 3.14 cu. inch	$911.19	Add To Cart Request Quote
RC-152	N/A 15 tons	N/A 15.7 tons	N/A 6.28 cu. inch	$931.21	Add To Cart Request Quote
RC-154	N/A 15 tons	N/A 15.7 tons	N/A 12.57 cu. inch	$1,035.79	Add To Cart Request Quote
RC-156	N/A 15 tons	N/A 15.7 tons	N/A 18.85 cu. inch	$1,138.14	Add To Cart Request Quote
RC-158	N/A 15 tons	N/A 15.7 tons	N/A 25.13 cu. inch	$1,313.92	Add To Cart Request Quote
RC-1510	N/A 15 tons	N/A 15.7 tons	N/A 31.42 cu. inch	$1,491.94	Add To Cart Request Quote
RC-1512	N/A 15 tons	N/A 15.7 tons	N/A 37.70 cu. inch	$1,830.15	Add To Cart Request Quote
RC-1514	N/A 15 tons	N/A 15.7 tons	N/A 43.98 cu. inch	$1,980.35	Add To Cart Request Quote
RC-251	N/A 25 tons	N/A 25.8 tons	N/A 5.16 cu. inch	$1,124.80	Add To Cart Request Quote
RC-252	N/A 25 tons	N/A 25.8 tons	N/A 10.31 cu. inch	$1,149.27	Add To Cart Request Quote
RC-254	N/A 25 tons	N/A 25.8 tons	N/A 20.63 cu. inch	$1,282.78	Add To Cart Request Quote
