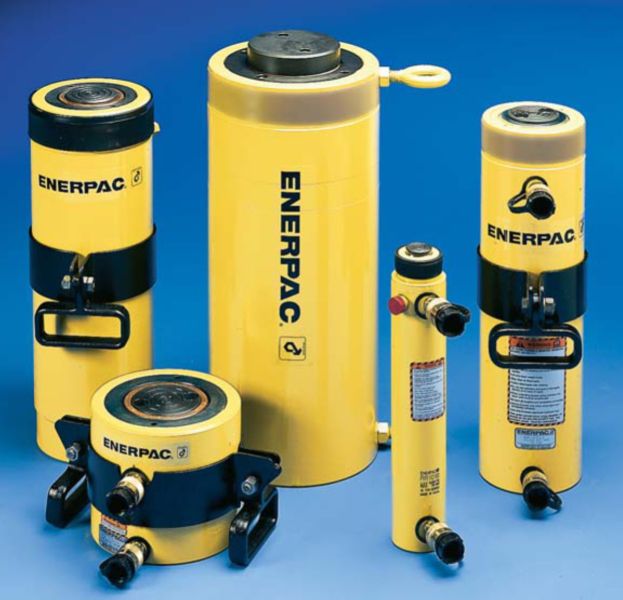

• Product Image - RR-Series, Double-Acting Cylinder
  • Collar threads, plunger threads and base mounting holes for easy fixturing (on most models)
  • Baked enamel finish for increased corrosion resistance
  • Removable hardened saddles protect plunger during lifting and pressing
  • Built-in safety valve prevents accidental over pressurization
  • CR-400 couplers included on all models
  • Plunger wiper reduces contamination, extending cylinder life
1 - 25 of 40 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification

Item #

Nominal Cylinder Capacity

Stroke

Max. Cylinder Capacity - Push

Cylinder Effective Area - Push

Collapsed Height - A

Price

Add To Cart/Request Quote
N/A 10 tons N/A 10 inches N/A 11 tons N/A 2.23 sq. inch N/A 16.13 inches $2,241.59 Add To Cart
Request Quote
N/A 10 tons N/A 12 inches N/A 11 tons N/A 2.23 sq. inch N/A 18.00 inches $2,816.87 Add To Cart
Request Quote
N/A 30 tons N/A 8.25 inches N/A 32 tons N/A 6.51 sq. inch N/A 15.25 inches $3,303.97 Add To Cart
Request Quote
N/A 30 tons N/A 14.50 inches N/A 32 tons N/A 6.51 sq. inch N/A 21.63 inches $3,933.25 Add To Cart
Request Quote
N/A 50 tons N/A 6.13 inches N/A 55 tons N/A 11.06 sq. inch N/A 13.06 inches $4,900.85 Add To Cart
Request Quote
N/A 50 tons N/A 13.13 inches N/A 55 tons N/A 11.06 sq. inch N/A 20.06 inches $5,609.48 Add To Cart
Request Quote
N/A 50 tons N/A 20.13 inches N/A 55 tons N/A 11.06 sq. inch N/A 28.88 inches $9,982.46 Add To Cart
Request Quote
N/A 75 tons N/A 6.13 inches N/A 80 tons N/A 15.92 sq. inch N/A 13.69 inches $6,062.43 Add To Cart
Request Quote
N/A 75 tons N/A 13.13 inches N/A 80 tons N/A 15.92 sq. inch N/A 20.69 inches $9,269.42 Add To Cart
Request Quote
N/A 100 tons N/A 6.63 inches N/A 103 tons N/A 20.65 sq. inch N/A 14.06 inches $7,232.81 Add To Cart
Request Quote
N/A 100 tons N/A 13.13 inches N/A 103 tons N/A 20.65 sq. inch N/A 20.63 inches $10,543.40 Add To Cart
Request Quote
N/A 100 tons N/A 18.13 inches N/A 103 tons N/A 20.65 sq. inch N/A 27.06 inches $14,673.92 Add To Cart
Request Quote
N/A 150 tons N/A 2.25 inches N/A 153 tons N/A 30.71 sq. inch N/A 7.72 inches $7,624.04 Add To Cart
Request Quote
N/A 150 tons N/A 6.13 inches N/A 153 tons N/A 30.71 sq. inch N/A 15.19 inches $9,525.10 Add To Cart
Request Quote
N/A 150 tons N/A 13.13 inches N/A 153 tons N/A 30.71 sq. inch N/A 22.20 inches $12,796.00 Add To Cart
Request Quote
N/A 150 tons N/A 32.13 inches N/A 153 tons N/A 30.71 sq. inch N/A 43.94 inches $34,720.37 Add To Cart
Request Quote
N/A 200 tons N/A 6 inches N/A 221 tons N/A 44.21 sq. inch N/A 16.94 inches $11,307.12 Add To Cart
Request Quote
N/A 200 tons N/A 13 inches N/A 221 tons N/A 44.21 sq. inch N/A 23.94 inches $17,241.71 Add To Cart
Request Quote
N/A 200 tons N/A 18 inches N/A 221 tons N/A 44.21 sq. inch N/A 30.13 inches $31,065.94 Add To Cart
Request Quote
N/A 200 tons N/A 24 inches N/A 221 tons N/A 44.21 sq. inch N/A 36.13 inches $42,722.42 Add To Cart
Request Quote
N/A 200 tons N/A 36 inches N/A 221 tons N/A 44.21 sq. inch N/A 48.13 inches $47,794.10 Add To Cart
Request Quote
N/A 200 tons N/A 48.00 inches N/A 221 tons N/A 44.21 sq. inch N/A 60.13 inches $54,431.80 Add To Cart
Request Quote
N/A 300 tons N/A 6 inches N/A 354 tons N/A 70.93 sq. inch N/A 19.13 inches $23,786.84 Add To Cart
Request Quote
N/A 300 tons N/A 12 inches N/A 354 tons N/A 70.93 sq. inch N/A 25.13 inches $30,430.05 Add To Cart
Request Quote
N/A 300 tons N/A 18 inches N/A 354 tons N/A 70.93 sq. inch N/A 31.13 inches $39,750.17 Add To Cart
Request Quote
