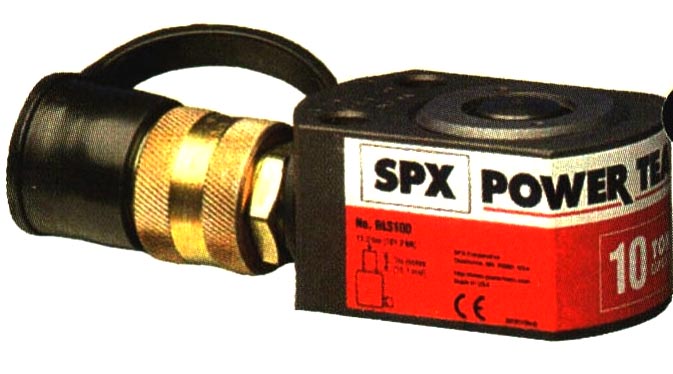

RLS Series 5-150 Ton Single-Acting, Spring-Return “Low Profile” Cylinders
PowerTeam Cylinders
- Ideal for confined areas from 1 5/8 Inch to 4 Inch clearance
- Cylinder body, piston and gland nut "Power Tech" treated for corrosion and abrasion resistance.
- Standard domed piston rod (5-30 ton) or swivel cap (50-150 ton) minimize effects of off-center loading.
- Unique heavy duty spring provides fast piston return.
- A 9796 3/8 Inch NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8 Inch coupler which is not angled). Oil ports are 3/8 Inch NPTF (except the RLS50).
- Couplers on all cylinders, except RLS50, are angled upward for extra clearance.
