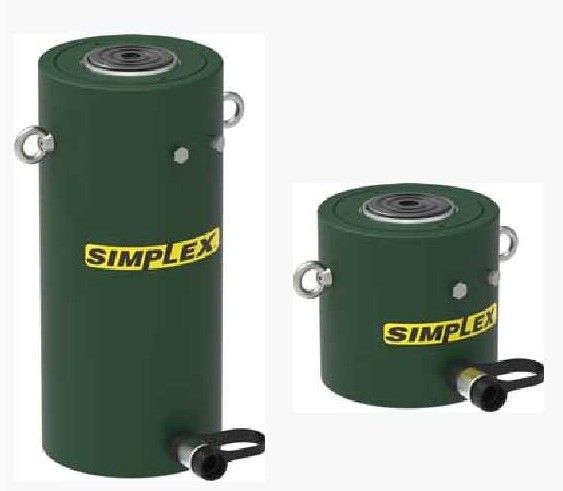

• Product Image - Simplex RCG-Series

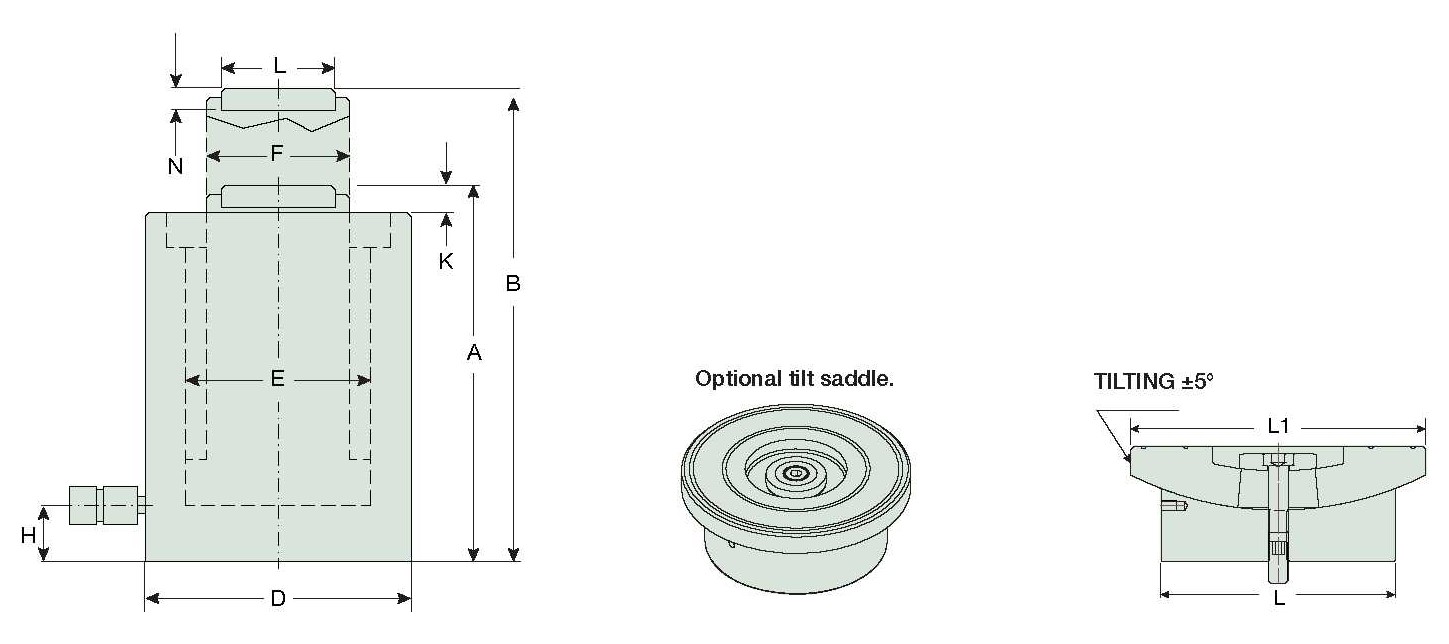

  • Dimensional Drawing - RCG-Series
  • 10 Models
  • Load-return.
  • Mechanical end of stroke avoids over travel at full pressure.
  • Replaceable wear bands improve seal life and side load capacity.
  • Custom strokes and capacities up to 1000 ton.
  • Optional tilt saddles.
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Capacity

Stroke

Oil Capacity Required

Effect Area

Weight

Price

Add To Cart/Request Quote
N/A 55 tons N/A 5.91 inches N/A 64.88 cu. inch N/A 10.99 sq. inch N/A 58 lbs. $2,637.23 Add To Cart
Request Quote
N/A 55 tons N/A 11.81 inches N/A 129.76 cu. inch N/A 10.99 sq. inch N/A 84 lbs. $4,725.76 Add To Cart
Request Quote
N/A 104 tons N/A 5.91 inches N/A 121.50 cu. inch N/A 20.57 sq. inch N/A 102 lbs. $4,462.78 Add To Cart
Request Quote
N/A 104 tons N/A 11.81 inches N/A 242.99 cu. inch N/A 20.57 sq. inch N/A 149 lbs. $7,631.03 Add To Cart
Request Quote
N/A 158 tons N/A 1.97 inches N/A 61.35 cu. inch N/A 31.16 sq. inch N/A 118 lbs. $4,011.62 Add To Cart
Request Quote
N/A 158 tons N/A 5.91 inches N/A 184.04 cu. inch N/A 31.16 sq. inch N/A 162 lbs. $4,976.27 Add To Cart
Request Quote
N/A 158 tons N/A 11.81 inches N/A 368.09 cu. inch N/A 31.16 sq. inch N/A 230 lbs. $6,320.66 Add To Cart
Request Quote
N/A 247 tons N/A 1.97 inches N/A 95.86 cu. inch N/A 48.69 sq. inch N/A 198 lbs. $6,020.27 Add To Cart
Request Quote
N/A 247 tons N/A 5.91 inches N/A 287.57 cu. inch N/A 48.69 sq. inch N/A 265 lbs. $7,360.11 Add To Cart
Request Quote
N/A 247 tons N/A 11.81 inches N/A 575.14 cu. inch N/A 48.69 sq. inch N/A 372 lbs. $9,376.70 Add To Cart
Request Quote
