• Item Image - Mechanical Jaw Pullers

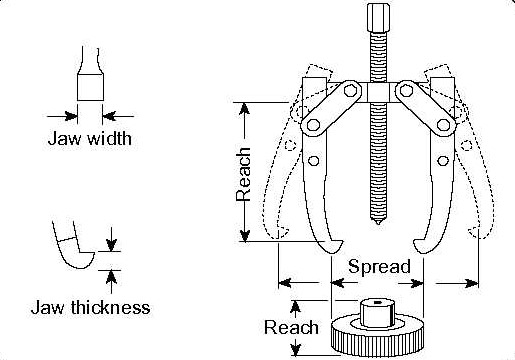

  • Dimensional Drawing
  • Grip-O-Matic feature on all pullers. The harder the pull, the tighter the grip for removing gears, bearings and countless other press fitted parts.
  • 2-way, 3-way and 2/3 way combination pullers make it easy to select a specific puller for a specific application.
  • Forged from high quality steel, heat treated and subjected to rigorous tests which exceed rated puller capacity.
  • Alloy steel heads are forged for maximum strength.
  • Forcing screw threads are rolled, not cut. This process creates a smoother and stronger thread.
  • Heat treated alloy steel cross bolts for maximum shear strength.
  • Machined puller jaw toes produce larger and stronger pulling toes.
1 - 22 of 22 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Max. Reach

Max. Spread

Screw size

Jaw Thickness

Jaw Width

Price

Add To Cart/Request Quote
N/A 2 1/8 inches N/A 3 1/4 inches N/A 5/16 - 24 x 3 7/8 inches N/A 9/64 inches N/A 1/4" inches $138.96 Add To Cart
Request Quote
N/A 2 1/8 inches N/A 3 1/4 inches N/A 5/16 - 24 x 3 7/8 inches N/A 9/64 inches N/A 1/4" inches $202.50 Add To Cart
Request Quote
N/A 3 3/8 inches N/A 4 inches N/A 3/8 - 24 x 4 7/8 inches N/A Upper 3/16 Lower 1/8 inches N/A Upper 1/4 Lower 1/2 inches Quote Add To Cart
Request Quote
N/A 3 3/8 inches N/A 4 3/4 inches N/A 3/8 - 24 x 4 7/8 inches N/A Upper 3/16 Lower 1/8 inches N/A Upper 1/4 Lower 1/2 inches $185.85 Add To Cart
Request Quote
N/A 3 1/4 inches N/A 6 inches N/A 9/16 - 20 x 6 15/16 inches N/A Upper 5/16 Lower 1/4 inches N/A Upper 3/8 Lower 3/4 inches $173.97 Add To Cart
Request Quote
N/A 3 1/4 inches N/A 7 inches N/A 9/16 - 20 x 6 15/16 inches N/A Upper 5/16 Lower 1/4 inches N/A Upper 3/8 Lower 3/4 inches $265.59 Add To Cart
Request Quote
N/A 5 1/2 inches N/A 6 inches N/A 9/16 - 20 x 6 15/16 inches N/A Upper 5/16 Lower 1/4 inches N/A Upper 3/8 Lower 3/4 inches $195.30 Add To Cart
Request Quote
N/A 5 1/2 inches N/A 7 inches N/A 9/16 - 20 x 6 15/16 inches N/A Upper 5/16 Lower 1/4 inches N/A Upper 3/8 Lower 3/4 inches $328.32 Add To Cart
Request Quote
N/A 5 inches N/A 9 inches N/A 11/16 - 18 x 9 inches N/A Upper 5/16 Lower 11/32 inches N/A Upper 1 Lower 1 inches $329.04 Add To Cart
Request Quote
N/A 5 inches N/A 10 1/2 inches N/A 11/16 - 18 x 9 inches N/A Upper 5/16 Lower 11/32 inches N/A Upper 1 Lower 1 inches $427.05 Add To Cart
Request Quote
N/A 8 3/4 inches N/A 9 1/2 inches N/A 11/16 - 18 x 9 inches N/A 11/32 inches N/A 1 inches $335.34 Add To Cart
Request Quote
N/A 8 3/4 inches N/A 11 inches N/A 11/16 - 18 x 9 inches N/A 11/32 inches N/A 1 inches $433.26 Add To Cart
Request Quote
N/A 11 inches N/A 12 inches N/A 13/16 - 16 x 12 inches N/A 9/16 inches N/A 1 inches $347.04 Add To Cart
Request Quote
N/A 15 1/4 inches N/A 15 1/2 inches N/A 13/16 - 16 x 12 inches N/A 9/16 inches N/A 1 inches $595.71 Add To Cart
Request Quote
N/A 11 inches N/A 12 inches N/A 13/16 - 16 x 12 inches N/A 9/16 inches N/A 1 inches $855.81 Add To Cart
Request Quote
N/A 15 1/4 inches N/A 17 inches N/A 13/16 - 16 x 12 inches N/A 9/16 inches N/A 1 inches $872.28 Add To Cart
Request Quote
N/A 14 1/2 inches N/A 14 inches N/A 1"6 x 12 inches N/A 9/16 inches N/A 1 inches $946.44 Add To Cart
Request Quote
N/A 18 3/4 inches N/A 16 inches N/A 1 - 14 x 13 1/2" lg. inches N/A 13/16 inches N/A 1 9/32 inches $1,012.05 Add To Cart
Request Quote
N/A 14 1/2 inches N/A 14 inches N/A 1 - 14 x 13 1/2 inches N/A 13/16 inches N/A 1 9/32 inches $1,644.66 Add To Cart
Request Quote
N/A 18 3/4 inches N/A 16 inches N/A 1 - 14 x 13 1/2 inches N/A 13/16 inches N/A 1 9/32 inches $1,709.10 Add To Cart
Request Quote
N/A 22 1/4 inches N/A 20 inches N/A 1 1/4 - 12 x 16 5/8 inches N/A 1 1/16 inches N/A 1 1/2 inches Quote Add To Cart
Request Quote
N/A 22 1/4 inches N/A 22 inches N/A 1 1/4 - 12 x 16 5/8 inches N/A 1 1/16 inches N/A 1 1/2 inches Quote Add To Cart
Request Quote
