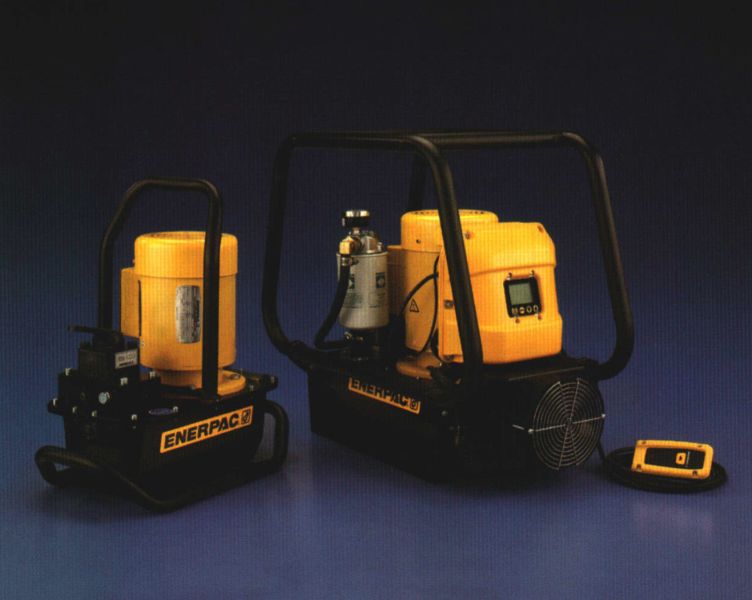

ZE3 Electric Pump Series
Electric Pumps
Output flow rate is listed at 60 Hz. Flow rate will be approximately 5/6 of these values at 50 Hz.
- Features Z-Class high-efficiency pump design; higher oil flow and by-pass pressure, cooler running and requires18% less current draw than comparable pumps
- Totally enclosed, fan-cooled industrial electric motors supply extended life and stand up to harsh industrial environments
- Low-voltage pendant, on certain models, provides additional safety for the operator
- Multiple valve and reservoir configurations provide application specific models to match the most demanding industrial applications
- High-strength, molded electrical enclosure protects electronics, power supplies and LCD readout from harsh industrial environments
- All models are 115 VAC, 1-phase at 50/60 Hz.
Output flow rate is listed at 60 Hz. Flow rate will be approximately 5/6 of these values at 50 Hz.
Item # |
Valve Model Number |
Motor Type |
Used with Cylinder |
Usable Oil Capacity |
Reservoir Capacity |
Price |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|
| ZE3208MB ZE3208MB/Asset/ZE3208MB.jpg | Valve Model Number N/A VM32 | Motor Type N/A Standard Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 2.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $6,714.27 |
Add To Cart
Request Quote |
| ZE3220MB ZE3220MB/Asset/a0002224.jpg | Valve Model Number N/A VM32 | Motor Type N/A Standard Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 5.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $7,322.84 |
Add To Cart
Request Quote |
| ZE3308MB ZE3308MB/Asset/ZE3308MB.jpg | Valve Model Number N/A VM33 | Motor Type N/A Standard Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 2.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $7,741.16 |
Add To Cart
Request Quote |
| ZE3320MB ZE3320MB/Asset/ZE3320MB.jpg | Valve Model Number N/A VM33 | Motor Type N/A Standard Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 5.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $8,349.73 |
Add To Cart
Request Quote |
| ZE3408MB ZE3408MB/Asset/ZE3408MB.jpg | Valve Model Number N/A VM43 | Motor Type N/A Standard Electric | Used with Cylinder N/A Double acting hydraulic return | Usable Oil Capacity N/A 2.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $7,741.16 |
Add To Cart
Request Quote |
| ZE3420MB ZE3420MB/Asset/ZE3420MB.jpg | Valve Model Number N/A VM43 | Motor Type N/A Standard Electric | Used with Cylinder N/A Double acting hydraulic return | Usable Oil Capacity N/A 5.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $8,349.73 |
Add To Cart
Request Quote |
| ZE3104DB ZE3104DB/Asset/ZE3104DB.jpg | Valve Model Number N/A VE32D | Motor Type N/A LCD Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 1.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $9,514.57 |
Add To Cart
Request Quote |
| ZE3108DB ZE3108DB/Asset/ZE3108DB.jpg | Valve Model Number N/A VE32D | Motor Type N/A LCD Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 2.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $9,794.93 |
Add To Cart
Request Quote |
| ZE3120DB ZE3120DB/Asset/ZE3120DB.jpg | Valve Model Number N/A VE32D | Motor Type N/A LCD Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 5.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $10,403.50 |
Add To Cart
Request Quote |
| ZE3208LB ZE3208LB/Asset/ZE3208LB.png | Valve Model Number N/A VM32 | Motor Type N/A LCD Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 2.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $8,373.09 |
Add To Cart
Request Quote |
| ZE3320LB ZE3320LB/Asset/ZE3320LB.png | Valve Model Number N/A VM33 | Motor Type N/A LCD Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 5.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $10,008.54 |
Add To Cart
Request Quote |
| ZE3420LB ZE3420LB/Asset/ZE3420LB.jpg | Valve Model Number N/A VM43 | Motor Type N/A LCD Electric | Used with Cylinder N/A Double acting hydraulic return | Usable Oil Capacity N/A 5.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $10,008.54 |
Add To Cart
Request Quote |
| ZE3304SB ZE3304SB/Asset/a0002224.jpg | Valve Model Number N/A VE33 | Motor Type N/A LCD Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 1.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $11,315.80 |
Add To Cart
Request Quote |
| ZE3308SB ZE3308SB/Asset/ZE3308SB.jpg | Valve Model Number N/A VE33 | Motor Type N/A LCD Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 2.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $11,596.16 |
Add To Cart
Request Quote |
| ZE3320SB ZE3320SB/Asset/ZE3320SB.jpg | Valve Model Number N/A VE33 | Motor Type N/A LCD Electric | Used with Cylinder N/A Single acting spring return | Usable Oil Capacity N/A 5.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $12,204.72 |
Add To Cart
Request Quote |
| ZE3408SB ZE3408SB/Asset/ZE3408SB.jpg | Valve Model Number N/A VE43 | Motor Type N/A LCD Electric | Used with Cylinder N/A Double acting hydraulic return | Usable Oil Capacity N/A 2.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $11,596.16 |
Add To Cart
Request Quote |
| ZE3420SB ZE3420SB/Asset/ZE3420SB.jpg | Valve Model Number N/A VE43 | Motor Type N/A LCD Electric | Used with Cylinder N/A Double acting hydraulic return | Usable Oil Capacity N/A 5.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $12,204.72 |
Add To Cart
Request Quote |
| ZE3440SB ZE3440SB/Asset/ZE3440SB.jpg | Valve Model Number N/A VE43 | Motor Type N/A LCD Electric | Used with Cylinder N/A Double acting hydraulic return | Usable Oil Capacity N/A 10.0 Gallon | Reservoir Capacity N/A 1.0-10 Gallon | $12,806.62 |
Add To Cart
Request Quote |
