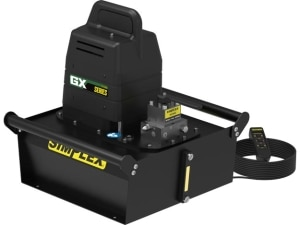

• Item Image - GX513 _GX535
  • 9 standard models.
  • Powered by a 1.7 hp univeral motor; 115 V - 60 Hz or 230 V - 60 Hz.
  • Low startup voltage, draws 11 amps at full load 115 V and 9.5 amps at full load 230 V.
  • Equipped with a 10' remote power controlled pendant.
  • Reservoirs available in 1.5, 2.5 and 5.0 gallons; welded steel design.
  • Intermittent pump use. Ideal for use with small, mid sized hydraulic cylinders or tools.



1 - 9 of 9 | Results Per Page | View |
1
Request Information Compare Items

Item #

Maximum Operating Pressure

Cylinder Compatability

Usable Oil Capacity

Motor Size

Motor Hertz

Motor Voltage

Valve Operation

Current Draw (amps)

Price

Add To Cart/Request Quote
N/A 10,000 psi N/A Single-Acting N/A 5 Gallon N/A 1.7 hp N/A 60 N/A 115 V N/A Manual N/A 17 $6,042.00 Add To Cart
Request Quote
N/A 10,000 psi N/A Double-Acting N/A 5 Gallon N/A 1.7 hp N/A 60 N/A 115 V N/A Manual N/A 17 $6,360.00 Add To Cart
Request Quote
N/A 10,000 psi N/A Double-Acting N/A 5 Gallon N/A 1.7 hp N/A 60 N/A 115 V N/A Solenoid N/A 17 $7,738.00 Add To Cart
Request Quote
N/A 10,000 psi N/A Single-Acting N/A 5 Gallon N/A 1.7 hp N/A 60 N/A 230 V N/A Manual N/A 9 $6,042.00 Add To Cart
Request Quote
N/A 10,000 psi N/A Double-Acting N/A 5 Gallon N/A 1.7 hp N/A 60 N/A 230 V N/A Manual N/A 9 $6,360.00 Add To Cart
Request Quote
N/A 10,000 psi N/A Double-Acting N/A 5 Gallon N/A 1.7 hp N/A 60 N/A 230 V N/A Solenoid N/A 9.5 $7,738.00 Add To Cart
Request Quote
N/A 10,000 psi N/A Single-Acting N/A 5 Gallon N/A 1.7 hp N/A 50 N/A 230 V N/A Manual N/A 9 Quote Add To Cart
Request Quote
N/A 10,000 psi N/A Double-Acting N/A 5 Gallon N/A 1.7 hp N/A 50 N/A 230 V N/A Manual N/A 9 Quote Add To Cart
Request Quote
N/A 10,000 psi N/A Double-Acting N/A 5 Gallon N/A 1.7 hp N/A 50 N/A 230 V N/A Solenoid N/A 9.5 Quote Add To Cart
Request Quote
